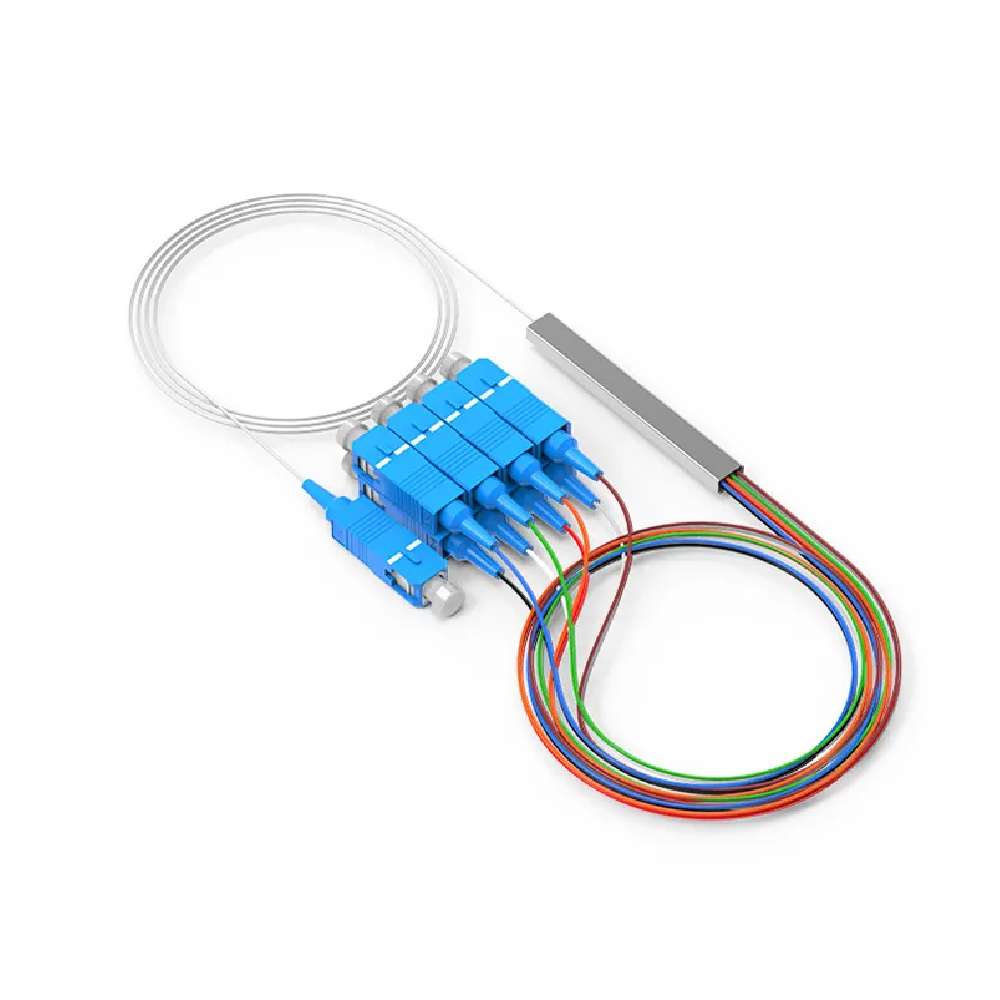

Fiber splitter

PLC planar waveguide optical splitter is an integrated waveguide optical power distribution device based on quartz substrate. Like coaxial cable transmission system, optical network system also needs to couple, branch and distribute optical signals, which requires optical splitter. It is one of the most important passive devices in optical fiber links, and is a fiber junction device with multiple inputs and outputs, It is especially suitable for connecting office end and terminal equipment in passive optical network (EPON, GPON, BPON, etc.) and realizing optical signal branching.

Product Advantages

1. Loss is not sensitive to the wavelength of the transmitted light and can meet the transmission needs of different wavelengths.

2. Uniform light distribution allows for uniform distribution of signals to users.

3. Compact in structure and small in size, it can be directly installed in various existing junction boxes without the need for special design to leave a large installation space.

4. There are many branching channels for a single device, which can reach over 32 channels.

5. The cost of multiplexing is low, and the more branches there are, the more obvious the cost advantage.

Types ：1*2  1*4  1*8  1*16  1*32  1*64  1*128
              1*3  1*5  1*6  1*7  1*9  1*10  1*12  1*24
              2*2  2*4  2*8  2*16  2*32  2*64  2*128
