Fiber Optic Patch Cord

< >

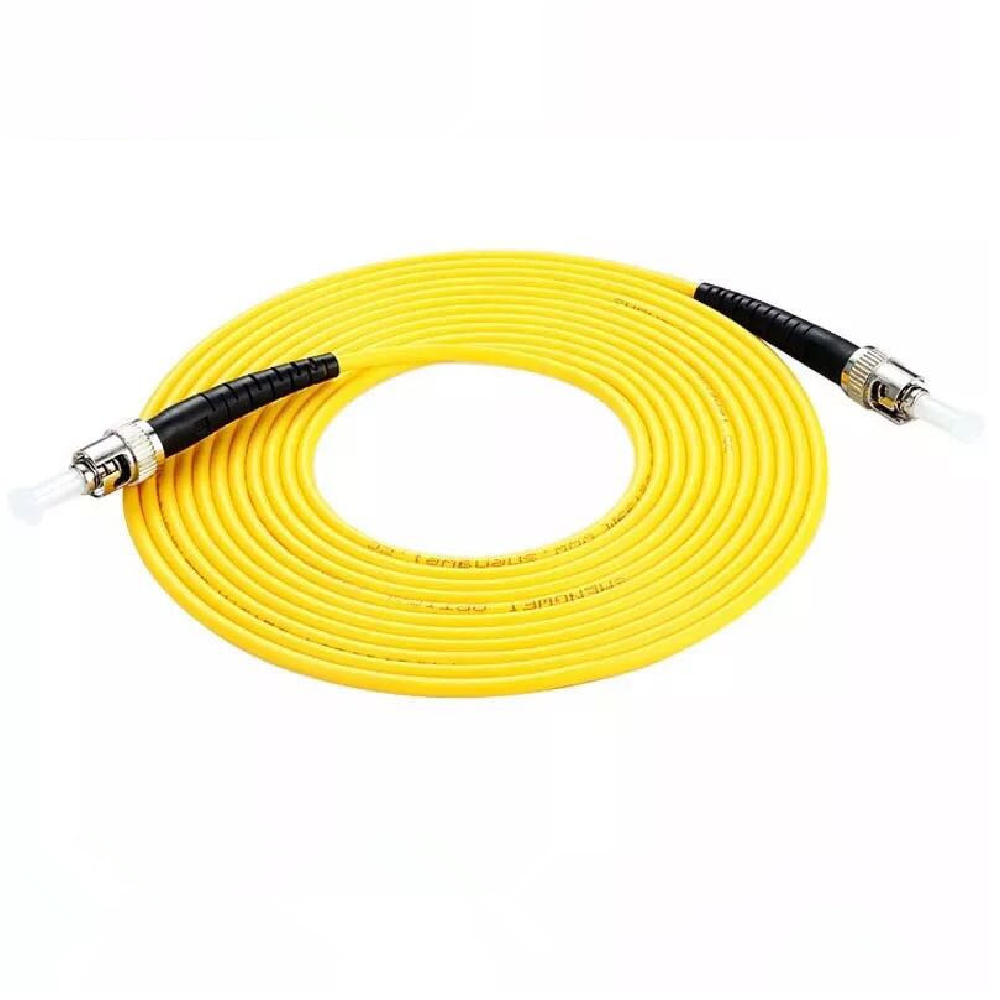

Fiber Optic Patch Cord Single mode simplex ST-ST

1. According to the connector, it can be divided into: FC, ST, SC, LC, MU, MPO, E2000, MTRJ, SMA, etc., and the end contact methods include PC, UPC, APC.

2. Outer diameter of optical fiber Ф 0.9mm、 Ф 2mm、 Ф 3mm, fiber core count: single core, double core, 4 core, 6 core, 8 core, 12 core or as specified by the customer.

3. The types of optical fibers can be divided into: G652B, G652D, G655, G657A1, G657A2, 50/125, 62.5/125, OM3 (50/125-150), OM4 (50/125-300), etc.

4. The color of the connector can be divided into blue (commonly used for single mode PC and UPC connectors), beige, gray (commonly used for multimode connectors), green (APC connectors), and water blue (OM3). The color of the tail sleeve can be divided into gray, blue, green, white, red, black, and turquoise.

5. Connection line length: custom

Connector Type	SC		FC		ST		LC
Fiber Type	single mode	multimode	single mode	multimode	single mode	multimode	single mode	multimode
Insertion loss	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB
Reflection loss	PC≥45dB UPC≥50dB APC≥60dB	PC≥25dB UPC≥30dB	PC≥45dB UPC≥50dB APC≥60dB	PC≥25dB UPC≥30dB	PC≥45dB UPC≥50dB APC≥60dB	PC≥25dB UPC≥30dB	PC≥45dB UPC≥50dB APC≥60dB	PC≥25dB UPC≥30dB
Repeatability	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB
Interchangeability	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB
Work Temperature	-40℃～+85℃
